超声波测风仪

与传统的超声波测风仪相比，FT风传感器提供40dB的超强信号，使其在极端天气、强振动和高噪声应用中具有显著优势。FT Technologies在英国设计和制造高质量、高性能的风传感器，将其出口到世界各地并应用在各种工业领域。

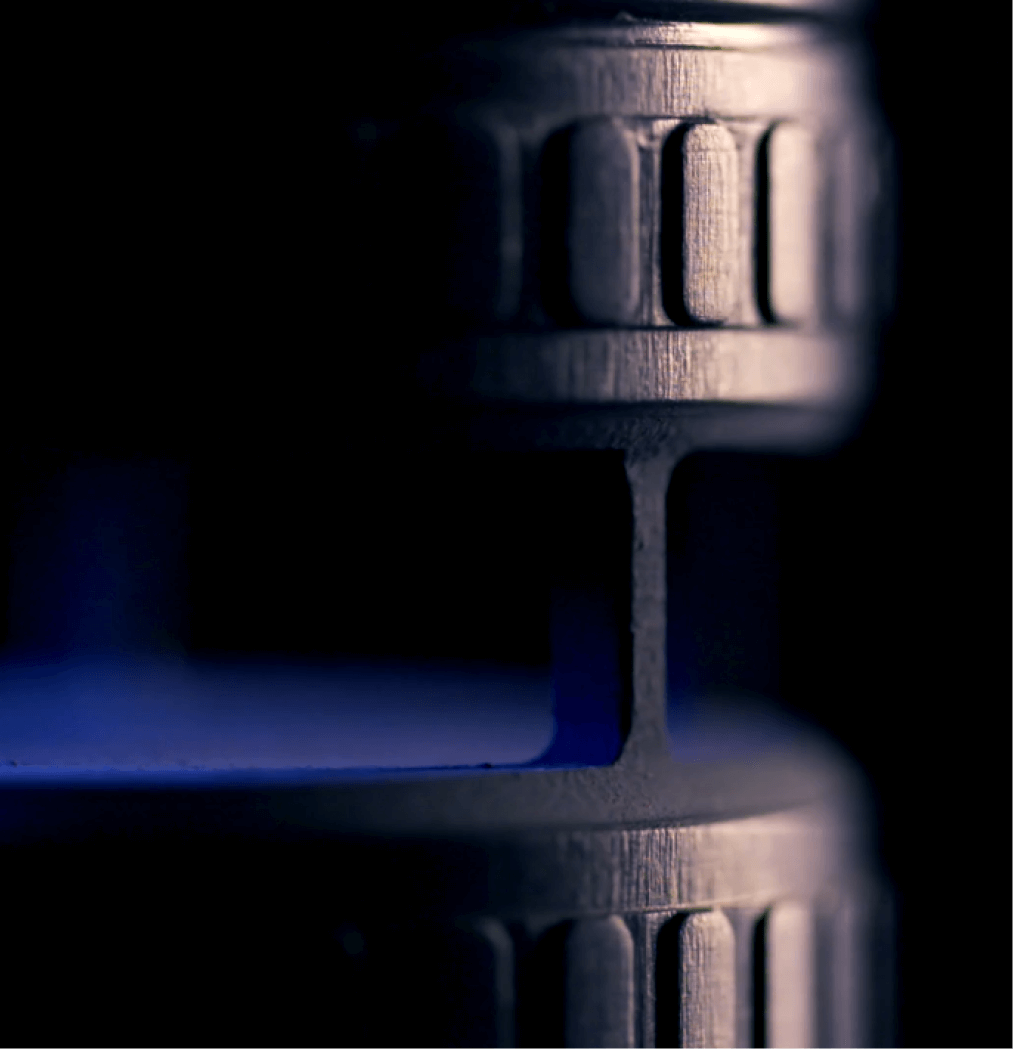

Close up shot of FT7 series

无需维护

紧凑的固态风传感器，没有移动部件需要固定或更换，这意味着一旦安装，就可以在需要时获得一致的、可靠的风数据。

Certification

ISO 9227 (2006)

抗腐蚀：按照BS EN ISO 12944 (1998)标准下的C5-M抗腐蚀等级规定，在中性盐雾喷射环境中对传感器进行1440小时的测试。

查看认证证书
MIL-STD-810G

防冰冻测试：在加热器开启的状态下，将传感器置于拟-15°C、风速15m/s的冻雨环境中。 当测试杆上积了37mm后的冰层后，但传感器本身仍保持无冰状态。 除冰测试：传感器在5分钟内重新恢复无冰状态。

查看认证证书
ISO 20653:2013 IPX6K EN 60529 (1992+A2:2103)

密封等级达IPX6K和IP66和IP67。 能够防护强劲的水流以每。 防沙尘 – 暴露在沙尘箱内长达8小时。 浸泡在一米深的水内达半小时。防止接触危险部件以及外部固体异物。

查看认证证书
EN 60068-2-6/64 (2008)

正弦振动测试Fc：5-500Hz、扫描范围为每分钟1倍频程、5个扫描周期、3轴振动测试。 随机振动测试：在三轴上分别对传感器进行频率为5Hz – 500Hz、时长90分钟、功率谱密度为0.0075g²/Hz的随机震动测试。

查看认证证书

技术

FT风传感器独有的Acu-Res®软件，自动补偿空气的温度、压力和湿度的变化，以保持数据的连续性。

了解更多

风控制系统

根据风速和风向对设备进行精确调整，意味着用户需要可靠的风数据。FT风传感器最新开发的软件和气动声学的实现方法，为用户提供最佳的性能、效率和可靠性。

FT7 series wind sensor photograph with schematic diagram behind

FT7系列

FT7系列风传感器是易安装、免维护的解决方案，即使在极恶劣的条件下也可以全年运行。

了解更多
FT6 series wind sensor photograph with schematic diagram behind

FT6系列

FT6系列风传感器为专业性能而设计，同时最大限度地减少自重对最终用户的影响。

了解更多
